New Dynapac CC5200

Compaction

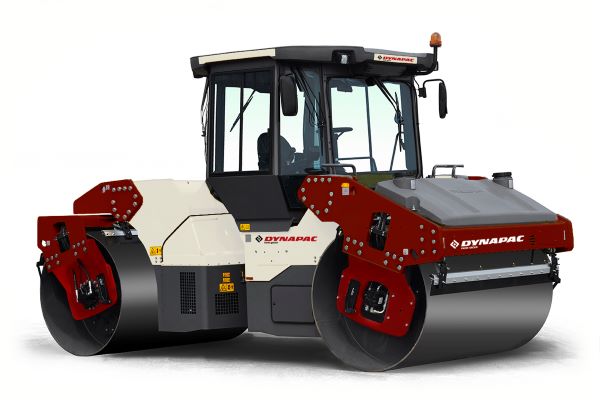

Dynapac CC5200
REQUEST A QUOTE Click To Call: 405-945-8503

The Dynapac CC5200 is a robust tandem asphalt roller designed for large-scale applications, including highways, airports, and heavy-duty industrial paving. Equipped with powerful dual vibratory drums, this model provides high compaction force and precision, ensuring smooth, durable surfaces even on the most demanding projects. Its fuel-efficient engine and advanced hydraulic systems optimize performance while reducing fuel consumption. The CC5200 features an operator-friendly cabin with excellent visibility, intuitive controls, and an advanced ergonomic design, making it ideal for extended use. Built for productivity and reliability, the CC5200 is a top choice for professional asphalt compaction.


More Info

Powerful Performance: Equipped with a high-output, fuel-efficient engine, the CC5200I provides consistent and reliable power, reducing operational costs while maintaining peak performance on demanding jobsites.

Advanced Drum Technology: Dual vibratory drums are engineered to achieve deeper and more uniform compaction, enhancing the quality and longevity of paved surfaces.

Operator Comfort: The spacious, ergonomically designed cabin includes vibration insulation, intuitive controls, and excellent visibility, ensuring operator comfort and precision during long hours of operation.

Enhanced Maneuverability: Optimized weight distribution and advanced suspension systems allow the CC5200I to navigate challenging terrains and tight spaces with ease, increasing overall productivity.

Durability and Reliability: Built with high-quality materials and components, the CC5200I is designed to withstand rigorous use in harsh environments, ensuring long-term reliability and minimal maintenance requirements.

Environmental Efficiency: Compliance with stringent emission standards and noise reduction technologies make the CC5200I an environmentally friendly choice for modern construction projects.


Masses


Max. operating mass 13300 kg

Operating mass (incl. Canopy) 11600 kg

Operating mass (incl. Cab) 12000 kg


Traction


Speed range (Dual/TC/AS) 0-12 km/h

Vertical oscillation ±7°

Max. theoretical gradeability 40 %


Engine / Drive


Manufacturer/Model Cummins QSB4.5 IIIA/T3

Type Water cooled turbo diesel

Rated power, SAE J1995

Rated power, SAE J1995 93 kW (125 hp ) @ 2200 rpm

Rated power, SAE J1995

Fuel tank capacity 240 l


Hydraulic System


Driving Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.

Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.

Steering Gear pump with constant displacem.

Service brake Hydrostatic in forward and reverse lever.

Parking/Emergency brake Failsafe multidisc brake in both drums.


Compaction - Oscillation


Oscillation frequency Hz
